Product Details:
Payment & Shipping Terms:
|

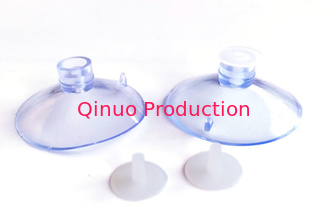

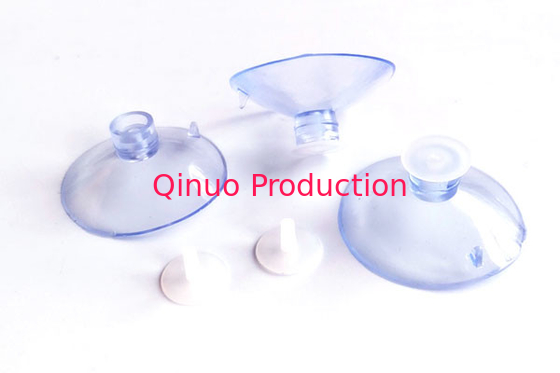

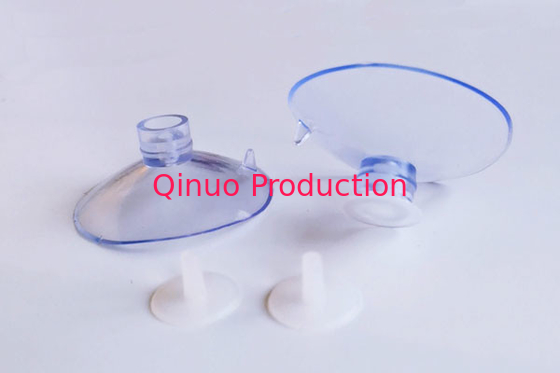

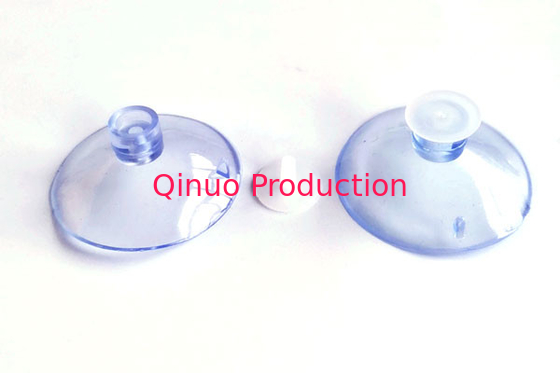

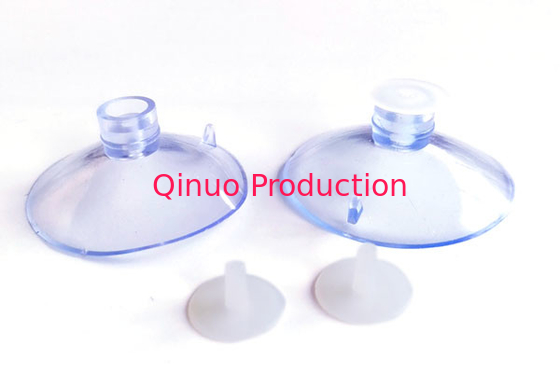

Type: | Thumb Tack | Diameter: | 45 Mm, Etc |
---|---|---|---|
Material: | Pvc | Color: | Clear |
MOQ: | 5000 Pcs | Lead Time: | 5-7 Days |
Custom: | Available |
The suction cup
generally in the shape of a circular, concave disk in the middle, has a breaking force, fixes the position of the object and prevents sliding;
parts is adsorbed on the object by using the difference between the internal and external atmospheric pressure, or a tool for grasping the object .
For the daily using, it mainly meets the needs of people to hang living objects at any time. Because of its "take" and "put" properties, it is used to hang towels, clothes, etc. Widely used in such as bathrooms, glass, windows, aquariums;
In the industry using, by changing the vacuum degree of the suction cup, the "holding" and "putting" in the process of handling and migration are realized, and automatic mechanization is realized with cooperation.
Suction cups Material: PVC, Eco-friendly PVC,TPU,Silicone ect.
Can meet the RoHS standard, suction cups are widely used in home, stores,industries ect.
Mushroom head suction cups available sizes: 15mm,20mm,25mm,30mm,35mm,40mm,42mm,45mm,50mm,52mm,60mm,80mm.
Model# | Suction cups diameter | Mushroom head diameter | Neck diameter | Neck length |
---|---|---|---|---|
QNSC-M15 | 15MM | 5.3MM | 3.5MM | 2.3MM |
QNSC-M20 | 20MM | 7MM | 3MM | 1.85MM |
QNSC-M25 | 25MM | 7.74MM | 4.5MM | 2.2MM |
QNSC-M30A | 30MM | 8MM | 4.5MM | 2.4MM |
QNSC-M30B | 30MM | 12MM | 7.2MM | 2.6MM |
QNSC-M30C | 30MM | 10.7MM | 7MM | 2.9MM |
QNSC-M35 | 35MM | 12MM | 8.6MM | 2.6MM |
QNSC-M40 | 40MM | 13.5MM | 8MM | 2MM |
QNSC-M42A | 42MM | 14.6MM | 9.3MM | 3MM |
QNSC-M42B | 42MM | 13.4MM | 8.6MM | 2.7/13MM |
QNSC-M52 | 52MM | 14.5MM | 8.9MM | 3.8MM |
QNSC-M55 | 55MM | 14.5MM | 8.7MM | 3.5MM |
QNSC-M80 | 80MM | 12.6MM | 6.2MM | 2.7MM |
Other suction cups:
Suction cups with plastic hook, metal hook
Available sizes: 15mm,20mm,25mm,28mm,30mm,35mm,40mm,45mm,50mm,55mm,60mm,80mm.
Model #: | Sucker diameter | Hole diameter |
---|---|---|
QNSC-H15/20 | 15MM/20MM | Metal hook |
QNSC-H25 | 25MM | 3.3MM |
QNSC-H27 | 27MM | 3.8MM |
QNSC-H30 | 30MM | 3.85MM |
QNSC-H35 | 35MM | 4.5MM |
QNSC-H40 | 40MM | 4.5MM |
QNSC-H45 | 45MM | 5MM |
QNSC-H50 | 50MM | 5MM |
QNSC-H60 | 60MM | 5.7MM |
QNSC-H80 | 80MM | 5.6MM |
QNSC-H85 | 85MM | 9.5MM |
screw suction cups
Available sizes list:
Model # | Screw Size | Model # | Screw Size |
---|---|---|---|
QNSC-S25A | M4-6MM | QNSC-S43B with ear | M5-10MM |
QNSC-S25B | M5-6MM | QNSC-S45 with ear | M4-5MM |
QNSC-S30 with ear | M4-6MM | QNSC-S50A | M4-6MM |
QNSC-S30A | M4-6MM | QNSC-S50B | M4-10MM |
QNSC-S30B | M4-10MM | QNSC-S50C | M5-6MM |
QNSC-S30C | M4-15MM | QNSC-S50D | M5-10MM |
QNSC-S30D | M5-6MM | QNSC-S50E | M6-10MM |
QNSC-S35A | M4-6MM | QNSC-S60A | M4-6MM |
QNSC-S35B | M4-10MM | QNSC-S60B | M5-6MM |
QNSC-S35C | M6-6MM | QNSC-S60C | M5-10MM |
QNSC-S40A | M4-6MM | QNSC-S60D | M6-6MM |
QNSC-S40B | M4-10MM | QNSC-S60E | M6-14MM |
QNSC-S40C | M5-6MM | QNSC-S60F | M6-24MM |
QNSC-S40D | M5-8MM | QNSC-S85A | M5-10MM |
QNSC-S40E | M5-10MM | QNSC-S85B | M6-10MM |
QNSC-S43A | M5-6MM |
We Shanghai Qinuo Industry are specialized in kinds of plastic suction cups.
Suction cups types that we have:
Sample available : we could supply a few free sample ,and please inform with your address to our sales, will check the shipping cost for you.
Paking |
Bulk : bulk packing in poly bag firstly , then into standard corrugated cartons. |
Custom packing | Retail : custom as client's request, eg. 4 pcs in one bag . |
Shipping |
By air , sea; or commonly international express. |
Type | delivery to your door , DAP , or DDP service available. |
