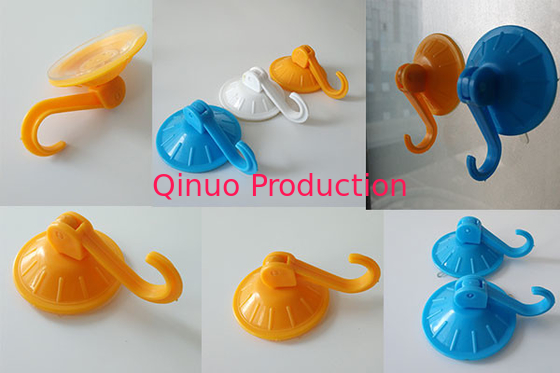

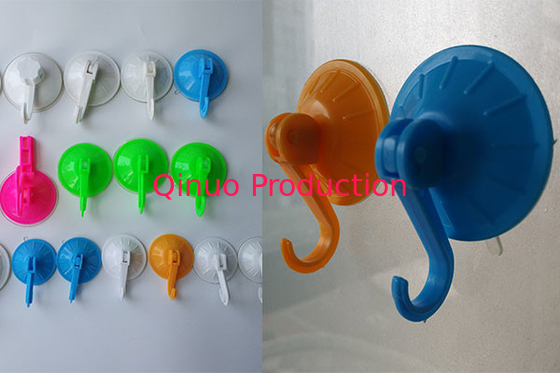

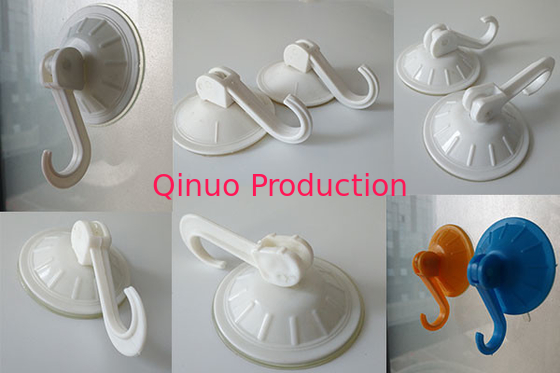

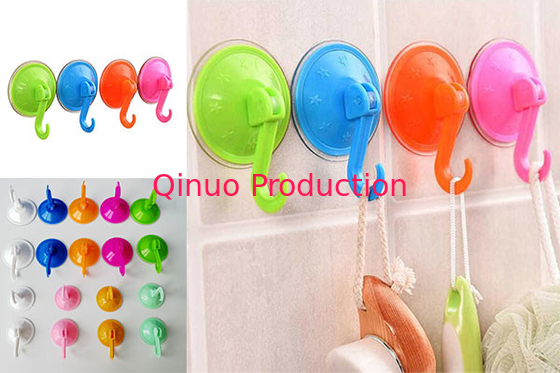

Factory supplier household using colorful plastic suction cup with plastic hook

Factory supplier household using colorful plastic suction cup with plastic hook

Factory supplier household using colorful plastic suction cup with plastic hook
Factory supplier household using colorful plastic suction cup with plastic hook Factory supplier household using colorful plastic suction cup with plastic hook Factory supplier household using colorful plastic suction cup with plastic hook Factory supplier household using colorful plastic suction cup with plastic hook

Large Image :  Factory supplier household using colorful plastic suction cup with plastic hook

Product Details:
Place of Origin: China
Brand Name: SHQN
Certification: none
Model Number: colored suction cup with plastic hook
Payment & Shipping Terms:
Minimum Order Quantity: 5000
Price: USD 0.01-0.5 /pcs
Packaging Details: bag/carton
Delivery Time: 7-15days
Payment Terms: T/T, Paypal, Western Union, etc
Supply Ability: 100000 pcs/month
Detailed Product Description
Type: With Metal Screw / Nut Diameter: 55,70, 75 Mm , Etc
Material: Pvc Color: Clear
MOQ: 5000 Pcs Lead Time: 7-15 Days
Custom: Available

Product Details

The suction cup

generally in the shape of a circular, concave disk in the middle, has a breaking force, fixes the position of the object and prevents sliding;
parts is adsorbed on the object by using the difference between the internal and external atmospheric pressure, or a tool for grasping the object
.
For the daily using, it mainly meets the needs of people to hang living objects at any time. Because of its "take" and "put" properties, it is used to hang towels, clothes, etc. Widely used in such as bathrooms, glass, windows, aquariums;
In the industry using, by changing the vacuum degree of the suction cup, the "holding" and "putting" in the process of handling and migration are realized, and automatic mechanization is realized with cooperation.



Size data

Factory supplier household using colorful plastic suction cup with plastic hook 0Factory supplier household using colorful plastic suction cup with plastic hook 1Factory supplier household using colorful plastic suction cup with plastic hook 2Factory supplier household using colorful plastic suction cup with plastic hook 3

Other with hook type, plastic hook:
Factory supplier household using colorful plastic suction cup with plastic hook 4
Model# Suction cups diameter Mushroom head diameter Neck diameter Neck length
QNSC-M15 15MM 5.3MM 3.5MM 2.3MM
QNSC-M20 20MM 7MM 3MM 1.85MM
QNSC-M25 25MM 7.74MM 4.5MM 2.2MM
QNSC-M30A 30MM 8MM 4.5MM 2.4MM
QNSC-M30B 30MM 12MM 7.2MM 2.6MM
QNSC-M30C 30MM 10.7MM 7MM 2.9MM
QNSC-M35 35MM 12MM 8.6MM 2.6MM
QNSC-M40 40MM 13.5MM 8MM 2MM
QNSC-M42A 42MM 14.6MM 9.3MM 3MM
QNSC-M42B 42MM 13.4MM 8.6MM 2.7/13MM
QNSC-M52 52MM 14.5MM 8.9MM 3.8MM
QNSC-M55 55MM 14.5MM 8.7MM 3.5MM
QNSC-M80 80MM 12.6MM 6.2MM 2.7MM
Factory supplier household using colorful plastic suction cup with plastic hook 5
Model #: Sucker diameter Hole diameter
QNSC-H15/20 15MM/20MM Metal hook
QNSC-H25 25MM 3.3MM
QNSC-H27 27MM 3.8MM
QNSC-H30 30MM 3.85MM
QNSC-H35 35MM 4.5MM
QNSC-H40 40MM 4.5MM
QNSC-H45 45MM 5MM
QNSC-H50 50MM 5MM
QNSC-H60 60MM 5.7MM
QNSC-H80 80MM 5.6MM
QNSC-H85 85MM 9.5MM

Sample available : we could supply  a few free sample ,and please inform with your address to our sales, will check the shipping cost for you.

We Shanghai Qinuo Industry are specialized in kinds of plastic suction cups.

Suction cups types that we have:

    1. Mushrrom head suction cups
    2. Suction cups with metal screw (metal nut/ knurling nuts)
    3. Suction cups with hook
    4. Suction cups with plastic screw
    5. Car window sunshade suction cups
    6. Double side suction cups
    7. Vertical hole suction cups (30mm 35mm 40mm)
  1. ABS+PVC suction cups
  2. Customized suction cups.

30 mm diameter for toy mushroom head suction cups suction cup vacuum



30 mm diameter for toy mushroom head suction cups suction cup vacuum



Packing & Shipping
Paking

 Bulk : bulk packing in poly bag firstly , then into standard corrugated cartons.

Custom packing  Retail : custom as client's request, eg. 4 pcs in one bag .

Shipping

 By air , sea; or commonly international express.

Type  delivery to your door , DAP , or DDP service available.



30 mm diameter for toy mushroom head suction cups suction cup vacuum

30 mm diameter for toy mushroom head suction cups suction cup vacuum
