custom pacakge available 40 mm clear color cross hole shape PVC plastic suction cup

custom pacakge available 40 mm clear color cross hole shape PVC plastic suction cup

custom pacakge available 40 mm clear color cross hole shape PVC plastic suction cup
custom pacakge available 40 mm clear color cross hole shape PVC plastic suction cup custom pacakge available 40 mm clear color cross hole shape PVC plastic suction cup custom pacakge available 40 mm clear color cross hole shape PVC plastic suction cup custom pacakge available 40 mm clear color cross hole shape PVC plastic suction cup

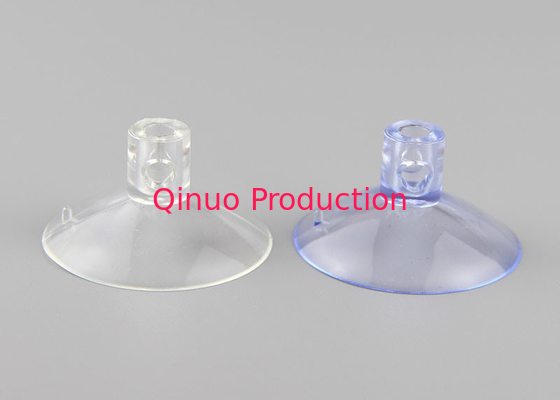

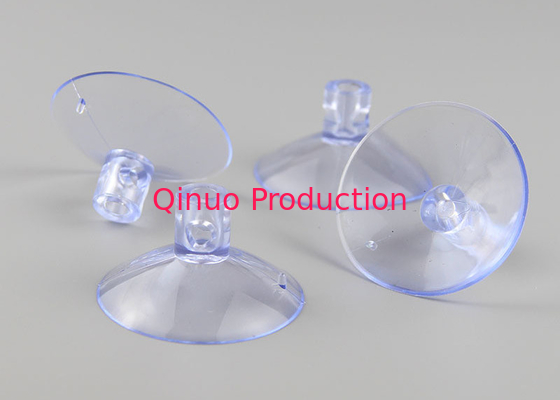

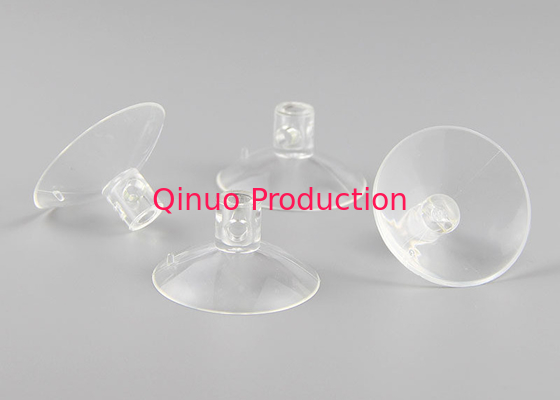

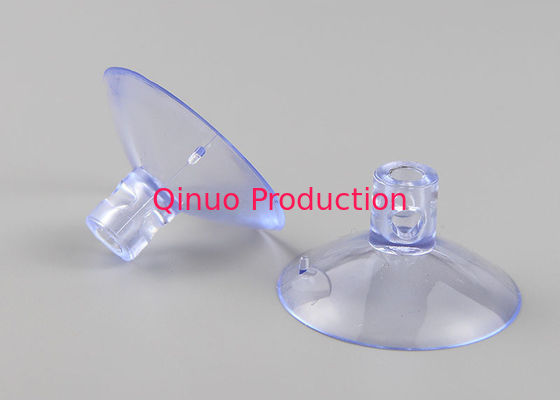

Large Image :  custom pacakge available 40 mm clear color cross hole shape PVC plastic suction cup

Product Details:
Place of Origin: China
Brand Name: SHQN
Certification: none
Model Number: 40mm cross hole
Payment & Shipping Terms:
Minimum Order Quantity: 5000
Price: USD 0.01-0.5 /pcs
Packaging Details: bag/carton
Delivery Time: 7-15days
Payment Terms: T/T, Paypal, Western Union, etc
Supply Ability: 100000 pcs/month
Detailed Product Description
Type: Cross Hole Shape Diameter: 40mm
Material: Pvc Color: Clear
MOQ: 5000 Pcs Lead Time: 5-7 Days
Custom: Available

Product Details

The suction cup



generally in the shape of a circular, concave disk in the middle, has a breaking force, fixes the position of the object and prevents sliding;

parts is adsorbed on the object by using the difference between the internal and external atmospheric pressure, or a tool for grasping the object .


For the daily using, it mainly meets the needs of people to hang living objects at any time. Because of its "take" and "put" properties, it is used to hang towels, clothes, etc. Widely used in such as bathrooms, glass, windows, aquariums;


In the industry using, by changing the vacuum degree of the suction cup, the "holding" and "putting" in the process of handling and migration are realized, and automatic mechanization is realized with cooperation.

Size data



custom pacakge available 40 mm clear color cross hole shape PVC plastic suction cup 0custom pacakge available 40 mm clear color cross hole shape PVC plastic suction cup 1custom pacakge available 40 mm clear color cross hole shape PVC plastic suction cup 2custom pacakge available 40 mm clear color cross hole shape PVC plastic suction cup 3

Related models with hole :
custom pacakge available 40 mm clear color cross hole shape PVC plastic suction cup 4custom pacakge available 40 mm clear color cross hole shape PVC plastic suction cup 5
Model Suction cup diameter hole size Neck diameter Neck length
QNSC-H28 28mm 4mm 7mm 7mm
QNSC-H30 30mm 4mm 8mm 7mm
QNSC-H35 35mm 4mm 9mm 7mm
QNSC-H40 40mm 4mm 9mm 7mm
QNSC-H45 45mm 4mm 9mm 7mm
QNSC-H50 50mm 5mm 10mm 7mm
QNSC-H60 60mm 6mm 10mm 10mm
QNSC-H80 80mm 6mm 10mm 10mm
QNSC-H85 85mm 10mm 18mm 23mm

Sample available : we could supply  a few free sample ,and please inform with your address to our sales, will check the shipping cost for you.



Suction cups Material: PVC, Eco-friendly PVC,TPU,Silicone ect.

Can meet the RoHS standard, suction cups are widely used in home, stores,industries ect.

Mushroom head suction cups available sizes: 15mm,20mm,25mm,30mm,35mm,40mm,42mm,45mm,50mm,52mm,60mm,80mm.

Model# Suction cups diameter Mushroom head diameter Neck diameter Neck length
QNSC-M15 15MM 5.3MM 3.5MM 2.3MM
QNSC-M20 20MM 7MM 3MM 1.85MM
QNSC-M25 25MM 7.74MM 4.5MM 2.2MM
QNSC-M30A 30MM 8MM 4.5MM 2.4MM
QNSC-M30B 30MM 12MM 7.2MM 2.6MM
QNSC-M30C 30MM 10.7MM 7MM 2.9MM
QNSC-M35 35MM 12MM 8.6MM 2.6MM
QNSC-M40 40MM 13.5MM 8MM 2MM
QNSC-M42A 42MM 14.6MM 9.3MM 3MM
QNSC-M42B 42MM 13.4MM 8.6MM 2.7/13MM
QNSC-M52 52MM 14.5MM 8.9MM 3.8MM
QNSC-M55 55MM 14.5MM 8.7MM 3.5MM
QNSC-M80 80MM 12.6MM 6.2MM 2.7MM



Other suction cups:

Suction cups with plastic hook, metal hook

Available sizes: 15mm,20mm,25mm,28mm,30mm,35mm,40mm,45mm,50mm,55mm,60mm,80mm.



custom pacakge available 40 mm clear color cross hole shape PVC plastic suction cup 6

Model #: Sucker diameter Hole diameter
QNSC-H15/20 15MM/20MM Metal hook
QNSC-H25 25MM 3.3MM
QNSC-H27 27MM 3.8MM
QNSC-H30 30MM 3.85MM
QNSC-H35 35MM 4.5MM
QNSC-H40 40MM 4.5MM
QNSC-H45 45MM 5MM
QNSC-H50 50MM 5MM
QNSC-H60 60MM 5.7MM
QNSC-H80 80MM 5.6MM
QNSC-H85 85MM 9.5MM
30 mm diameter for toy mushroom head suction cups suction cup vacuum
30 mm diameter for toy mushroom head suction cups suction cup vacuum
Packing & Shipping
Paking

 Bulk : bulk packing in poly bag firstly , then into standard corrugated cartons.

Custom packing  Retail : custom as client's request, eg. 4 pcs in one bag .

Shipping

 By air , sea; or commonly international express.

Type  delivery to your door , DAP , or DDP service available.



30 mm diameter for toy mushroom head suction cups suction cup vacuum

30 mm diameter for toy mushroom head suction cups suction cup vacuum
