| Application: | For Aquarium Thermometer | Diameter: | 30mm |
|---|---|---|---|
| Ring: | With 18mm Diameter Pull Ring | Color: | Transparent Color |
| Sample: | Availabe |

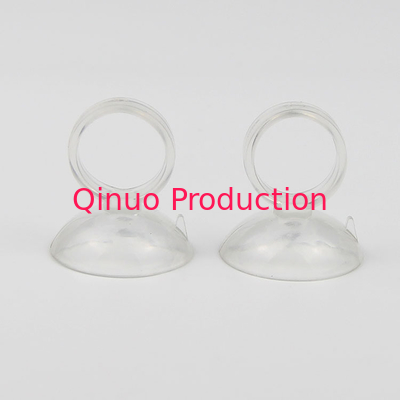

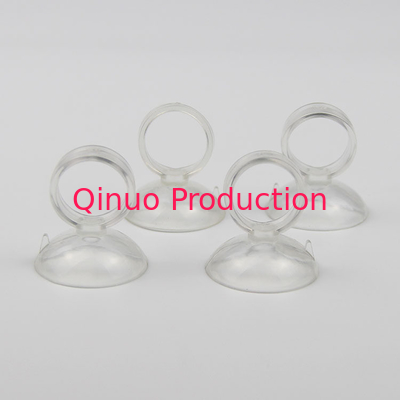

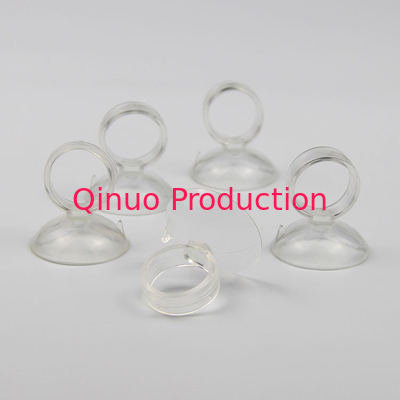

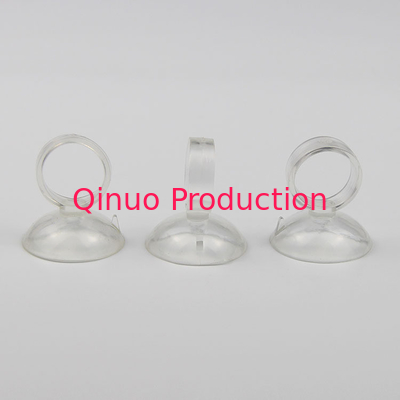

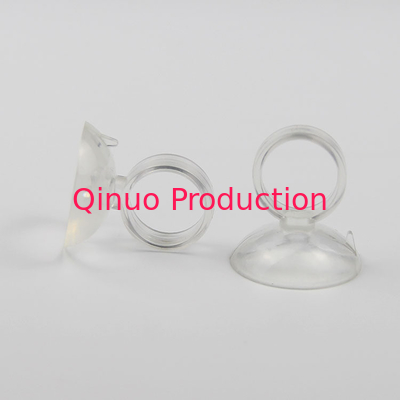

SHQN 30mm transparent color Fixed sucker for aquarium thermometer with 18mm diameter pull ring
Suction cups Material: PVC, Eco-friendly PVC,TPU,Silicone ect.
Can meet the RoHS standard, suction cups are widely used in home, stores,industries ect.
Mushroom head suction cups available sizes: 15mm,20mm,25mm,30mm,35mm,40mm,42mm,45mm,50mm,52mm,60mm,80mm.
| Model# | Suction cups diameter | Mushroom head diameter | Neck diameter | Neck length |
|---|---|---|---|---|
| QNSC-M15 | 15MM | 5.3MM | 3.5MM | 2.3MM |
| QNSC-M20 | 20MM | 7MM | 3MM | 1.85MM |
| QNSC-M25 | 25MM | 7.74MM | 4.5MM | 2.2MM |
| QNSC-M30A | 30MM | 8MM | 4.5MM | 2.4MM |
| QNSC-M30B | 30MM | 12MM | 7.2MM | 2.6MM |
| QNSC-M30C | 30MM | 10.7MM | 7MM | 2.9MM |
| QNSC-M35 | 35MM | 12MM | 8.6MM | 2.6MM |
| QNSC-M40 | 40MM | 13.5MM | 8MM | 2MM |
| QNSC-M42A | 42MM | 14.6MM | 9.3MM | 3MM |
| QNSC-M42B | 42MM | 13.4MM | 8.6MM | 2.7/13MM |
| QNSC-M52 | 52MM | 14.5MM | 8.9MM | 3.8MM |
| QNSC-M55 | 55MM | 14.5MM | 8.7MM | 3.5MM |
| QNSC-M80 | 80MM | 12.6MM | 6.2MM | 2.7MM |
Other suction cups:
Suction cups with plastic hook, metal hook
Available sizes: 15mm,20mm,25mm,28mm,30mm,35mm,40mm,45mm,50mm,55mm,60mm,80mm.
| Model #: | Sucker diameter | Hole diameter |
|---|---|---|
| QNSC-H15/20 | 15MM/20MM | Metal hook |
| QNSC-H25 | 25MM | 3.3MM |
| QNSC-H27 | 27MM | 3.8MM |
| QNSC-H30 | 30MM | 3.85MM |
| QNSC-H35 | 35MM | 4.5MM |
| QNSC-H40 | 40MM | 4.5MM |
| QNSC-H45 | 45MM | 5MM |
| QNSC-H50 | 50MM | 5MM |
| QNSC-H60 | 60MM | 5.7MM |
| QNSC-H80 | 80MM | 5.6MM |
| QNSC-H85 | 85MM | 9.5MM |
screw suction cups
Available sizes list:
| Model # | Screw Size | Model # | Screw Size |
|---|---|---|---|
| QNSC-S25A | M4-6MM | QNSC-S43B with ear | M5-10MM |
| QNSC-S25B | M5-6MM | QNSC-S45 with ear | M4-5MM |
| QNSC-S30 with ear | M4-6MM | QNSC-S50A | M4-6MM |
| QNSC-S30A | M4-6MM | QNSC-S50B | M4-10MM |
| QNSC-S30B | M4-10MM | QNSC-S50C | M5-6MM |
| QNSC-S30C | M4-15MM | QNSC-S50D | M5-10MM |
| QNSC-S30D | M5-6MM | QNSC-S50E | M6-10MM |
| QNSC-S35A | M4-6MM | QNSC-S60A | M4-6MM |
| QNSC-S35B | M4-10MM | QNSC-S60B | M5-6MM |
| QNSC-S35C | M6-6MM | QNSC-S60C | M5-10MM |
| QNSC-S40A | M4-6MM | QNSC-S60D | M6-6MM |
| QNSC-S40B | M4-10MM | QNSC-S60E | M6-14MM |
| QNSC-S40C | M5-6MM | QNSC-S60F | M6-24MM |
| QNSC-S40D | M5-8MM | QNSC-S85A | M5-10MM |
| QNSC-S40E | M5-10MM | QNSC-S85B | M6-10MM |
| QNSC-S43A | M5-6MM |
We Shanghai Qinuo Industry are specialized in kinds of plastic suction cups.
Suction cups types that we have:
