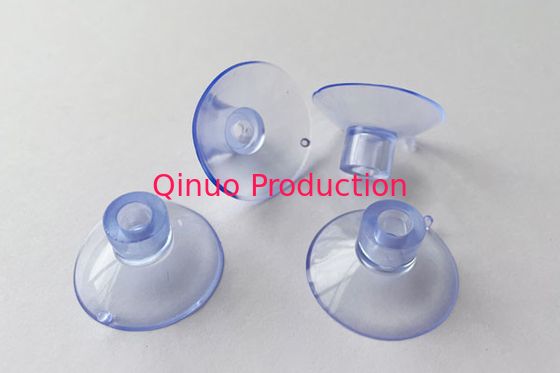

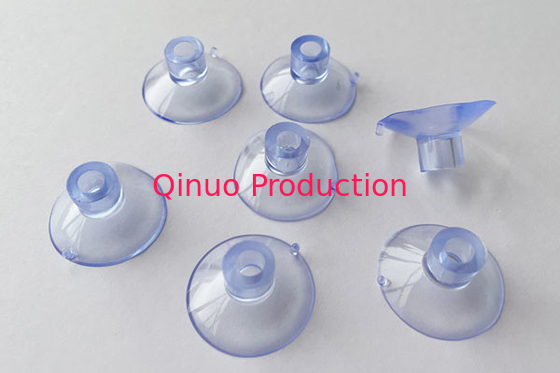

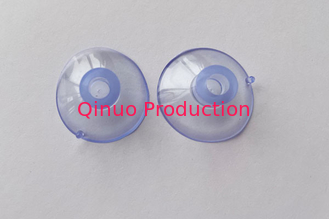

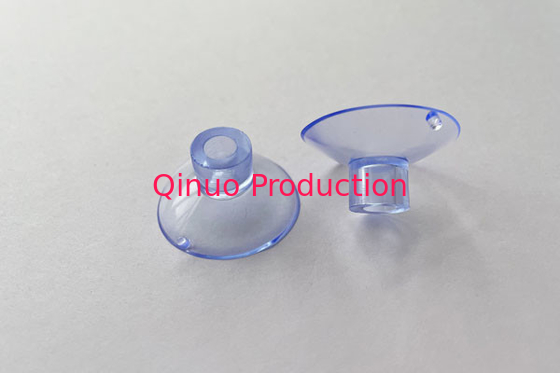

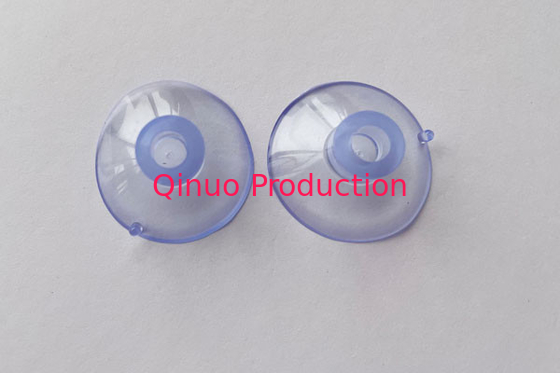

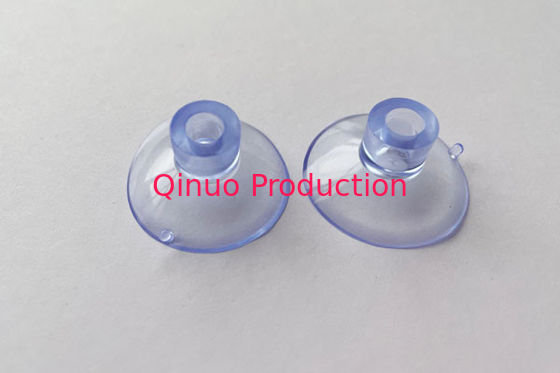

Factory Directly Supplier Colored 30mm Pvc Plastic Suction Cup With Vertical Hole

Large Image : Factory Directly Supplier Colored 30mm Pvc Plastic Suction Cup With Vertical Hole

Product Details:

Place of Origin:	China
Brand Name:	SHQN
Certification:	none
Model Number:	QNSC-VH

Payment & Shipping Terms:

Minimum Order Quantity:	5000
Price:	USD 0.01-0.5 /pcs
Delivery Time:	5-7 days
Payment Terms:	T/T, Paypal, Western Union, etc
Supply Ability:	100000 pcs/month

Contact Now

Detailed Product Description

Product Details

The suction cup

generally in the shape of a circular, concave disk in the middle, has a breaking force, fixes the position of the object and prevents sliding;
parts is adsorbed on the object by using the difference between the internal and external atmospheric pressure, or a tool for grasping the object
.
For the daily using, it mainly meets the needs of people to hang living objects at any time. Because of its "take" and "put" properties, it is used to hang towels, clothes, etc. Widely used in such as bathrooms, glass, windows, aquariums;
In the industry using, by changing the vacuum degree of the suction cup, the "holding" and "putting" in the process of handling and migration are realized, and automatic mechanization is realized with cooperation.

Size data

For this with vertical hole type, available size as following:

30 mm in diameter .

35 mm in diameter

Custom colored type

Related models with hole :

Model	Suction cup diameter	hole size	Neck diameter	Neck length
QNSC-H28	28mm	4mm	7mm	7mm
QNSC-H30	30mm	4mm	8mm	7mm
QNSC-H35	35mm	4mm	9mm	7mm
QNSC-H40	40mm	4mm	9mm	7mm
QNSC-H45	45mm	4mm	9mm	7mm
QNSC-H50	50mm	5mm	10mm	7mm
QNSC-H60	60mm	6mm	10mm	10mm
QNSC-H80	80mm	6mm	10mm	10mm
QNSC-H85	85mm	10mm	18mm	23mm

Sample available : we could supply a few free sample ,and please inform with your address to our sales, will check the shipping cost for you.
Factory Directly Supplier Colored 30mm Pvc Plastic Suction Cup With Vertical Hole 5

30 mm diameter for toy mushroom head suction cups suction cup vacuum

Packing & Shipping

Paking	Bulk : bulk packing in poly bag firstly , then into standard corrugated cartons.
Custom packing	Retail : custom as client's request, eg. 4 pcs in one bag .

Shipping	By air , sea; or commonly international express.
Type	delivery to your door , DAP , or DDP service available.
